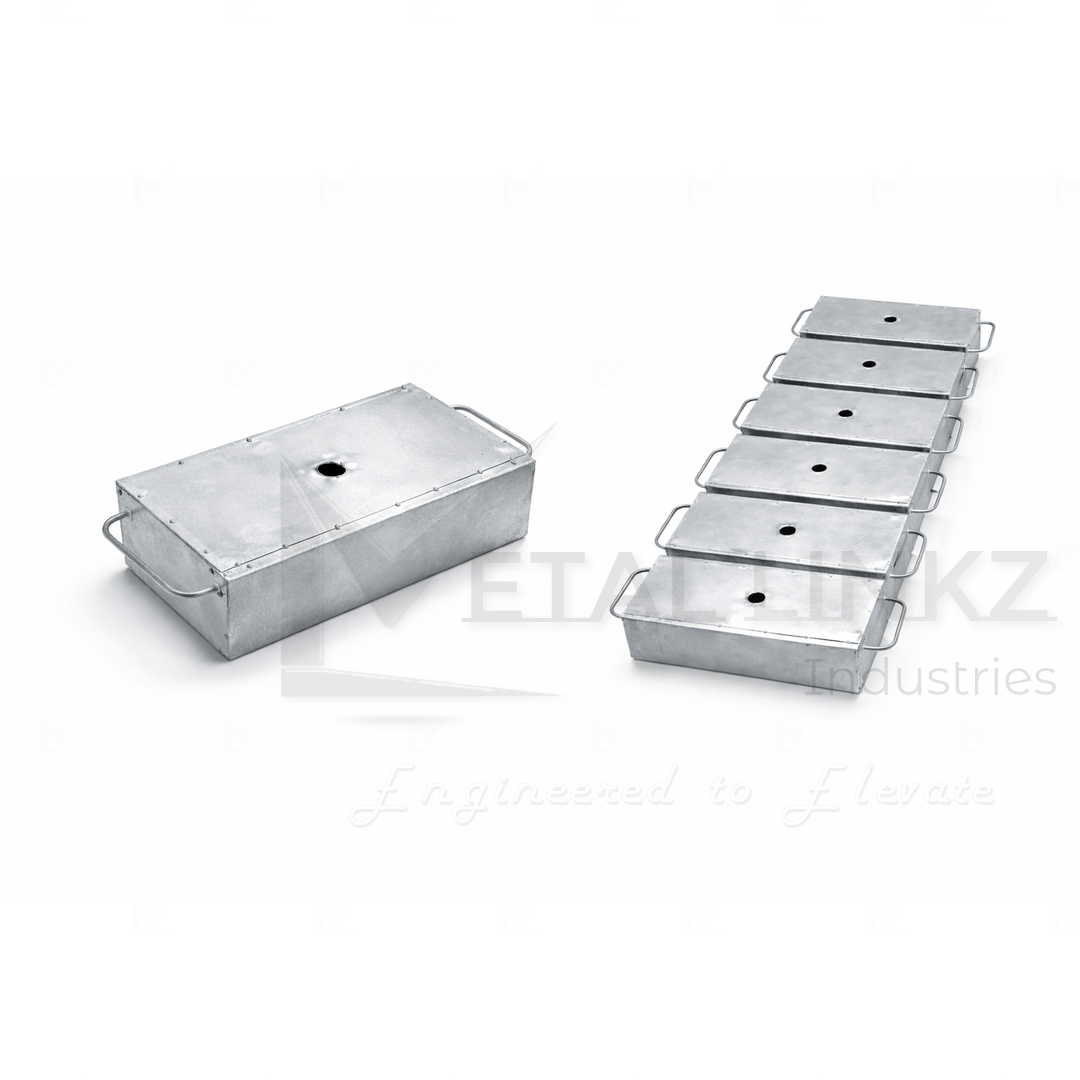

A lift counterweight box (also known as a counterweight frame or filler box) is a critical mechanical component in traction elevator systems. Its primary role is to provide balance, ensuring the elevator operates smoothly, safely, and with maximum energy efficiency.

Key Functions

Energy Efficiency: By acting like a seesaw, it reduces the amount of force the motor needs to apply. The motor only has to lift the “difference” in weight rather than the entire mass of the car, significantly lowering power consumption.

Enhanced Safety: It reduces the strain on the lifting cables (wire ropes) and allows the braking system to work more effectively, as there is less momentum to overcome during stops.
